MOTORDRIVES

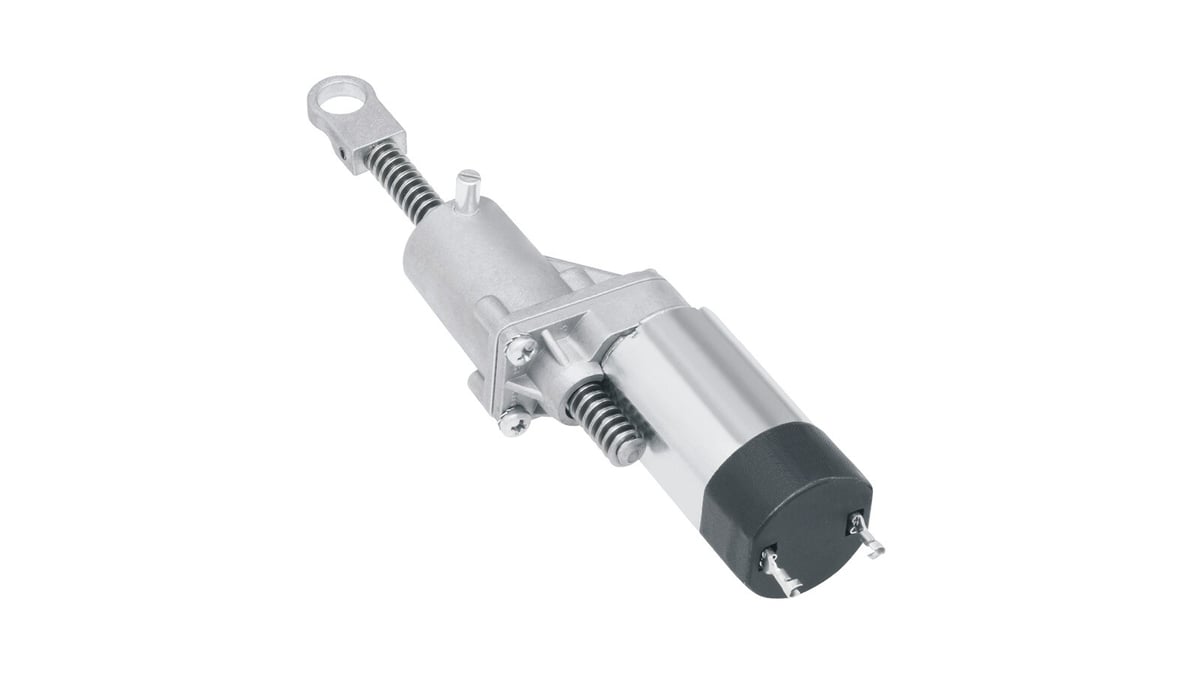

Type 100

Compact small DC drive. Available with two alternate spur gear variants and lead screw pitches. Soft blocking by overcurrent protection up to 2 A possible.

DATASHEET

    • SPEED

    5 to 40 mm/s

    VOLTAGE

    12 - 36 VDC

    FORCE

    2500 to 1400 N

    STROKE LENGTH

    180 to 426 mm

    Description

    Compact small DC drive. Available with two alternate spur gear variants and lead screw pitches. Soft blocking by overcurrent protection up to 2 A possible.

    Versatile application in the following market segments, among others: Engineering, Hightech, Industry and Mechanical Engineering.

    Customer-specific options

    • Other stroke lengths and installation sizes available upon request.
    • Different mounting solutions to suit your application.
    • Available with several spindles.

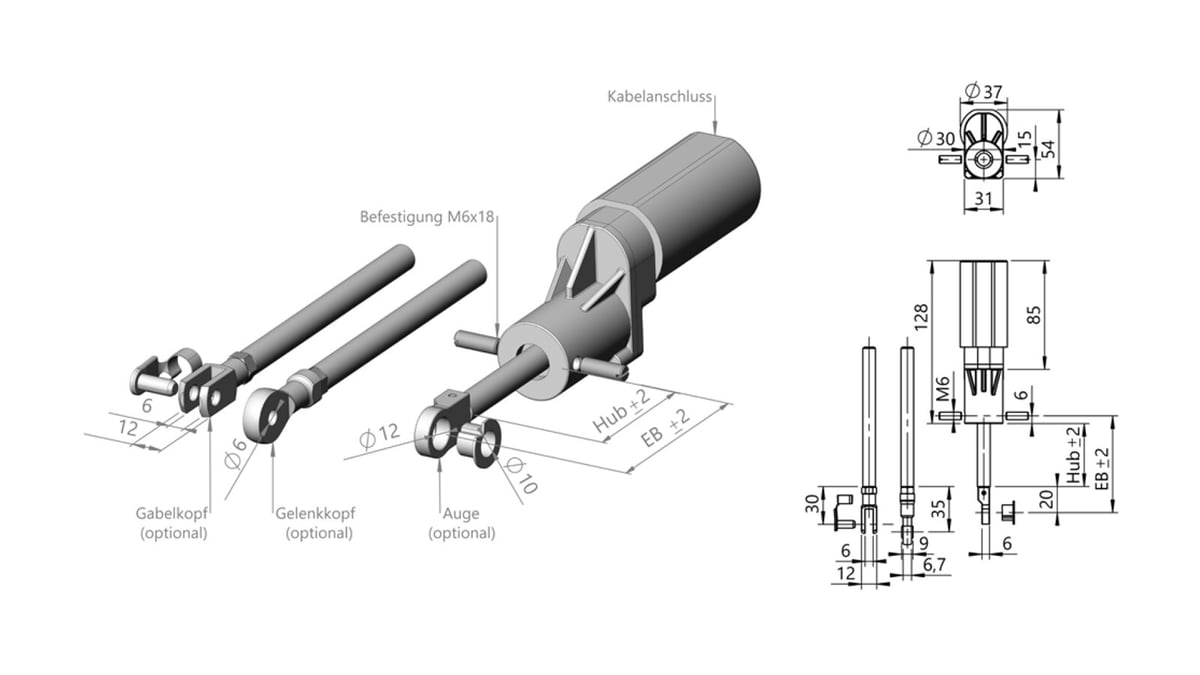

    Images

    Relevant products

    CONTROLBOXES

    C2-10



    • Suitable for 1 motor
    • Soft start / soft stop
    • Current limit
    • 0 - 8 A or 0 - 16 A
