LINEAR ACTUATORS

con25

With a diameter of only 25 mm, con25 is designed for applications with very limited space.

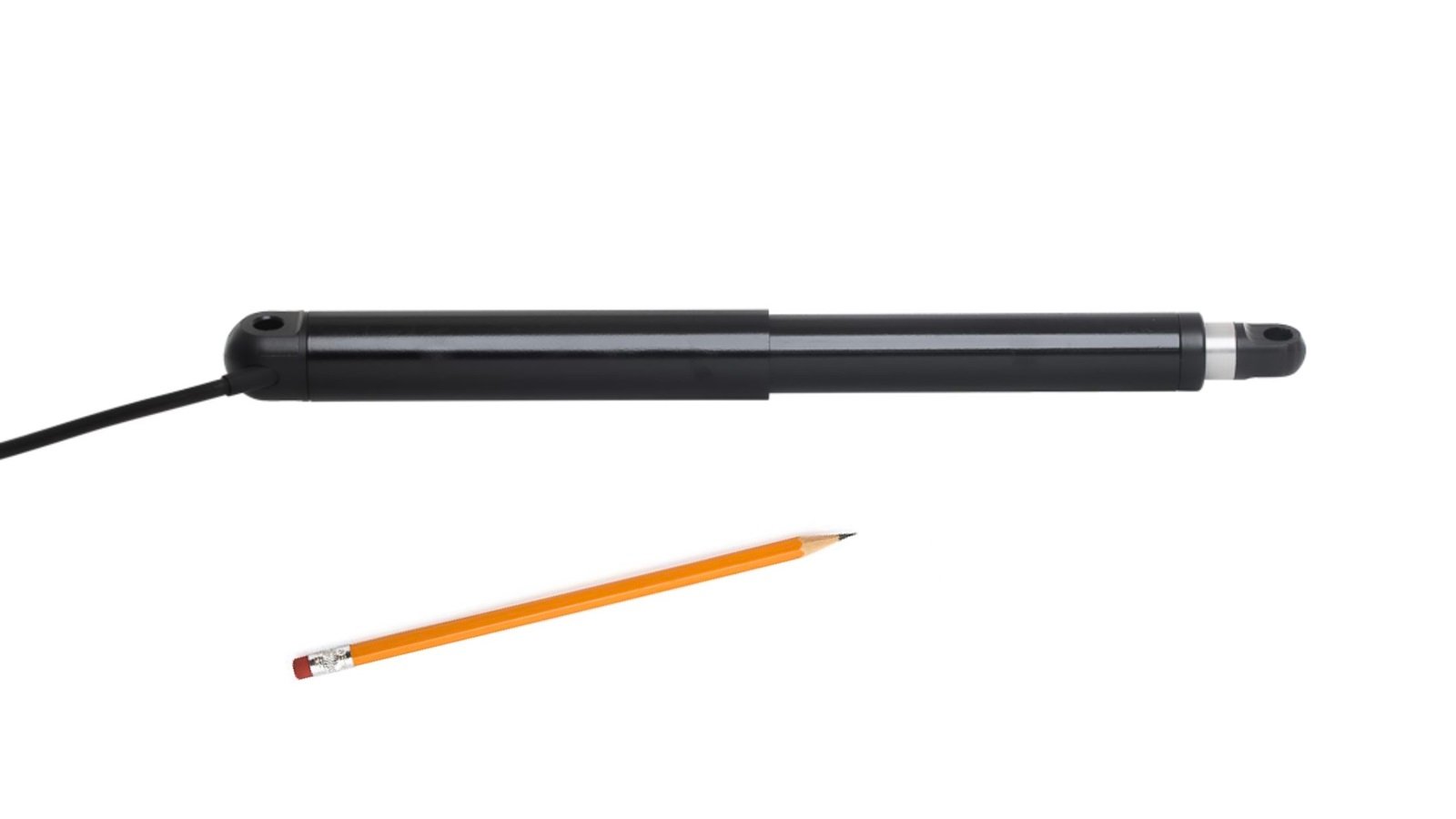

con25_1600x900_AE_1

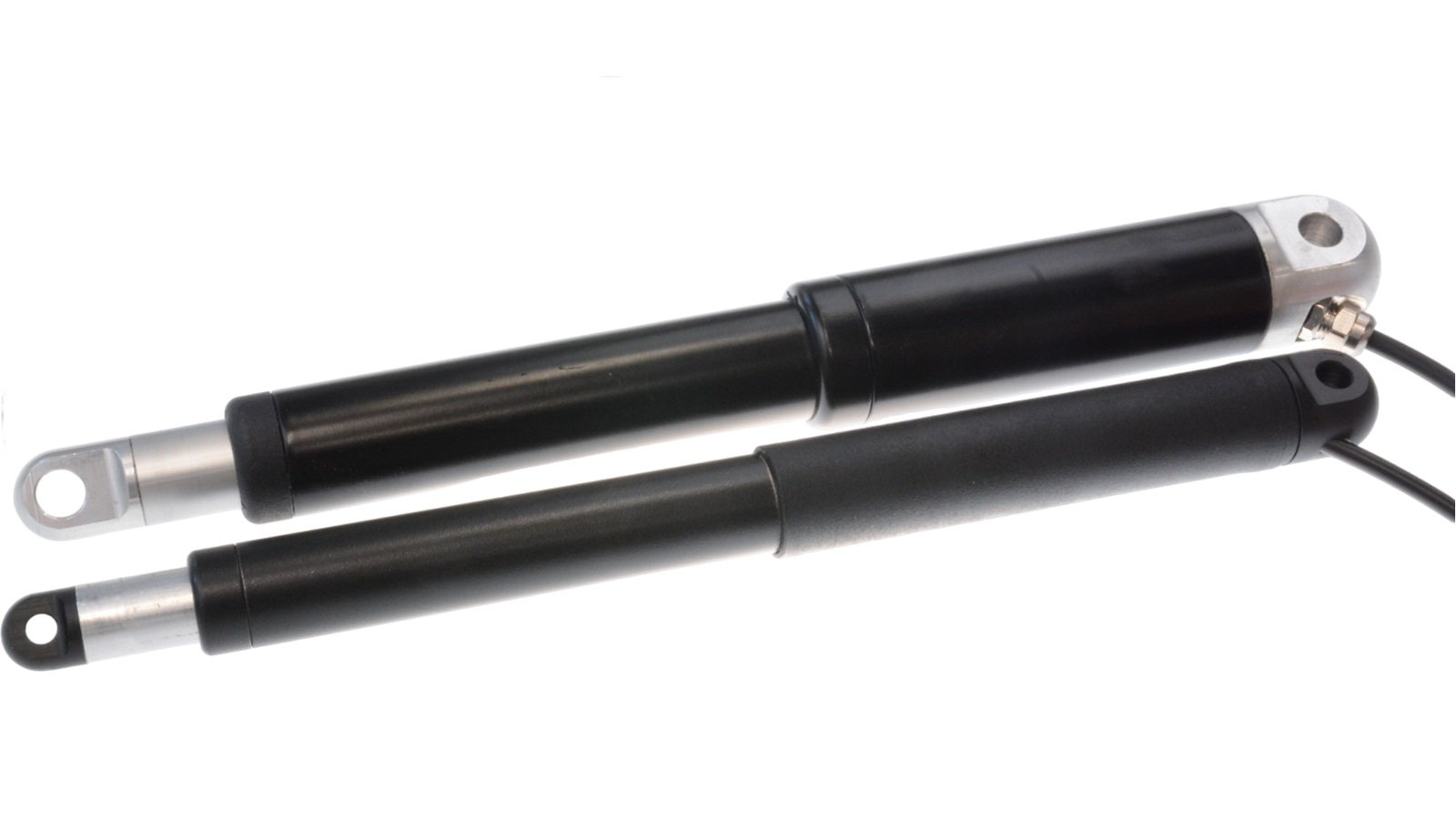

con25_1600x900_AE_3

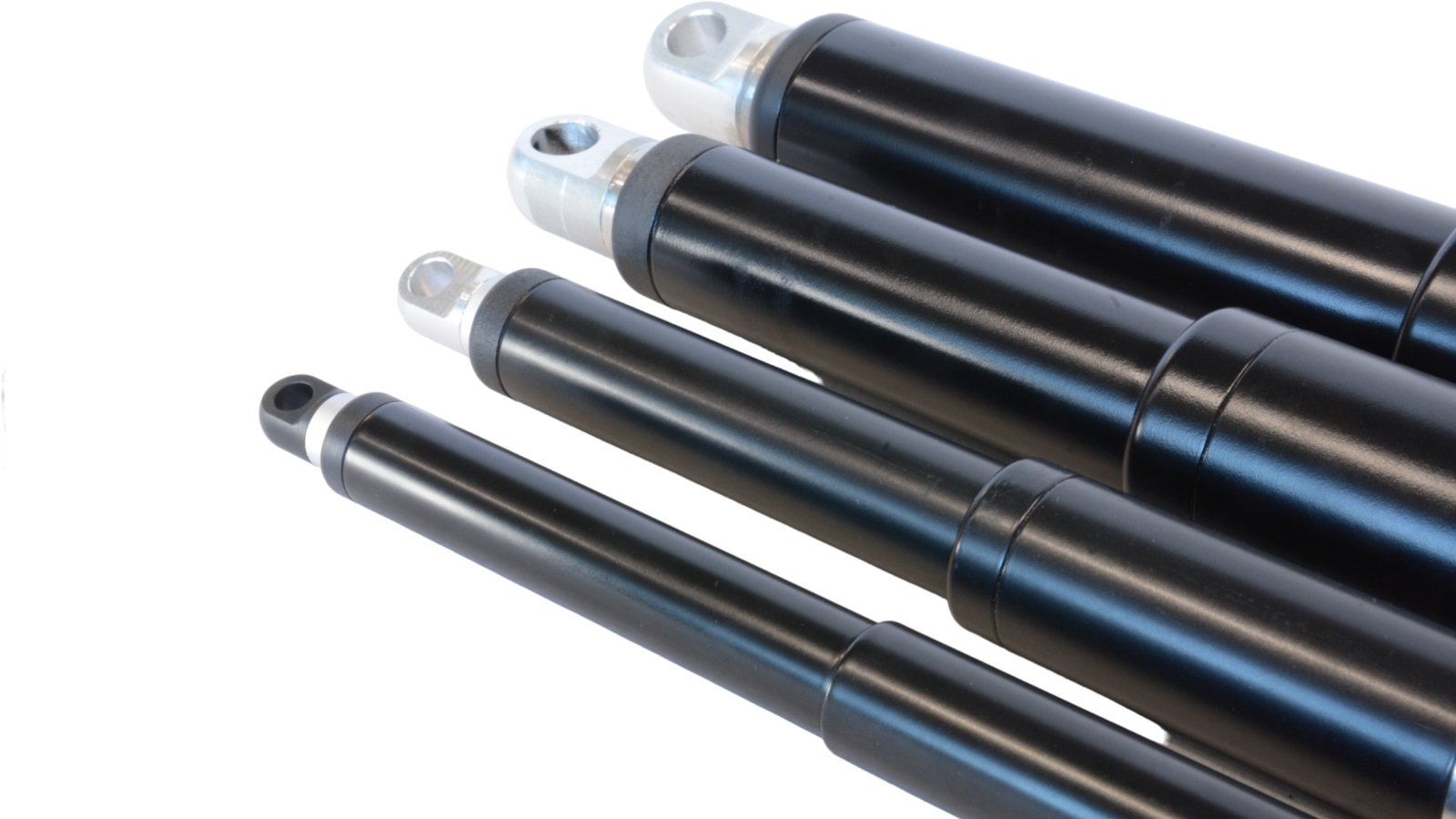

con25_1600x900_AE_2

SPEED

1,5 to 5 mm/s

VOLTAGE

12/24 VDC

FORCE

110 to 370 N

STROKE LENGTH

50 to 250 mm

Description

With a diameter of only 25 mm, the con25 is designed for applications with very limited space. The actuator features the familiar "Concens look-and-feel" and can be mounted for a wide range of applications. The con25 will not be available with integrated controller (icon), but it will be available with the Hall option for synchronous running and positioning.

Compatible controllers and hand controls are available.

Customer-specific options

  • Other stroke lengths and installation sizes available upon request.
  • Clevises to suit your application.
  • With or without Hall sensors for positioning/synchronization
  • Available in any RAL color.
  • Other cable lengths (1 - 9 m)

Images

Relevant products

CONTROLBOXES

C2-10



  • Suitable for 1 motor
  • Soft start / soft stop
  • Current limit
  • 0 - 8 A or 0 - 16 A
CONTROLBOXES

C2-20



  • Suitable for 1 motor
  • Analog input
  • Current limit
  • Positioning
CONTROLBOXES

C2-30



  • Suitable for up to 2 motors
  • FW/BW command
  • Current limit
  • Parallel control
CONTROLBOXES

C2-40-PLI



  • Suitable for up to 4 motors
  • FW/BW command
  • Current limit
  • Parallel control
