LINEAR ACTUATORS

con35

The con35 is a compact, versatile electric in-line actuator for a variety of lifting tasks. In addition to a modern and small design, this actuator also works very efficiently. In addition, a variety of mounting options make it easy to install.

DATASHEET HALL SENSOR
con35_RVS_A&E_1600x900
con35_RVS_Staal_A&E_1600x900

SPEED

3 to 33 mm/s

VOLTAGE

12/24 VDC

FORCE

120 to 2200 N

STROKE LENGTH

50 to 750 mm

Description

The con35 is ideal where size is limited by design or functionality. The electric in-line actuator is made of powder-coated steel (IP66) with an aluminum or stainless steel piston rod, providing a rugged design that protects the motor and electrics. The con35 comes with a variety of standard clevises in polyamide, aluminum or stainless steel for easy mounting.

Compatible controllers, hand controls and batteries for mobile use are available.

Customer-specific options

  • Other stroke lengths and installation sizes available upon request.
  • Clevises to suit your application.
  • 'Harsh Environment' (tested to IP68 and IP69)
  • With or without Hall sensors for positioning/synchronization

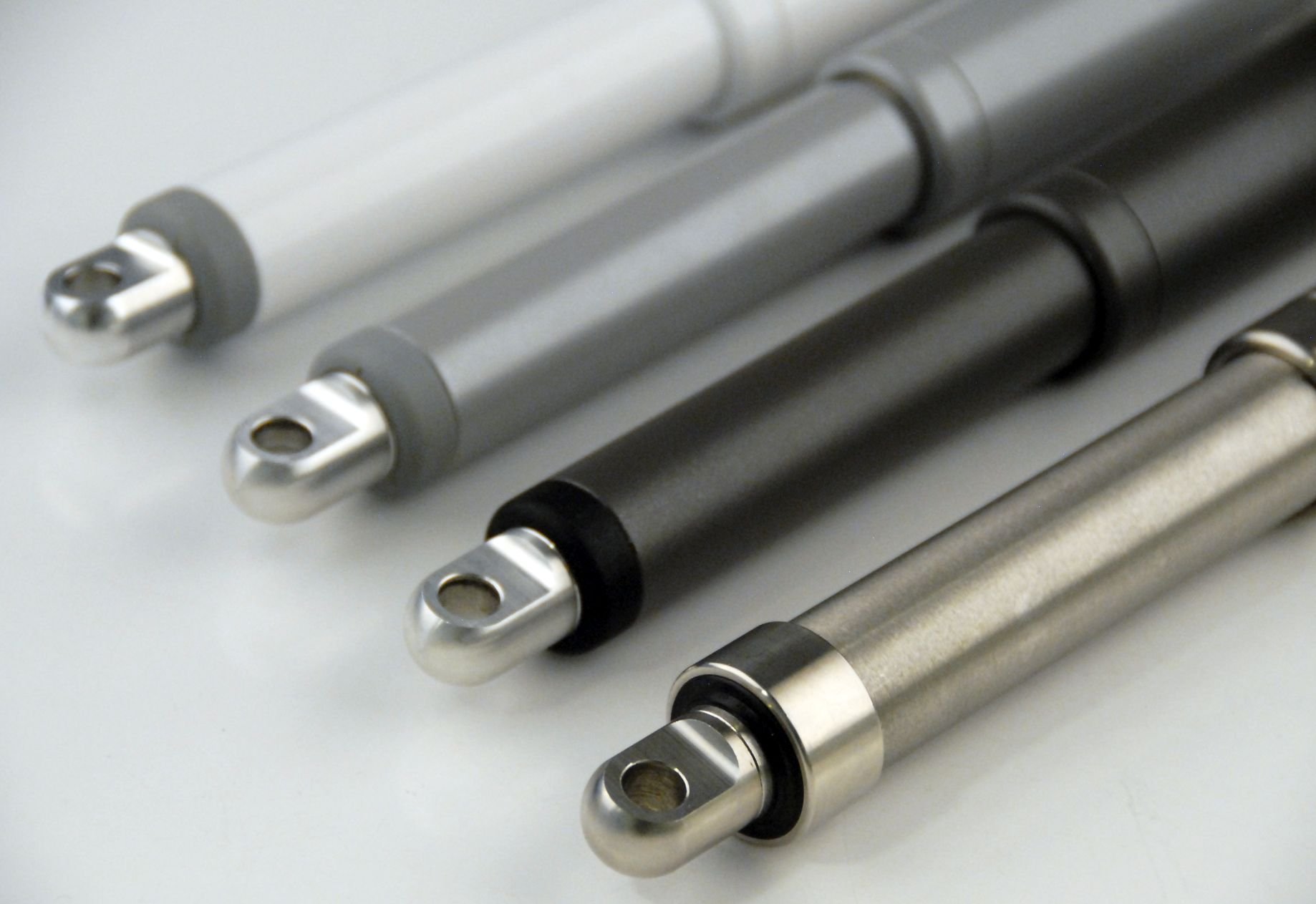

  • Available in any RAL color and stainless steel.
  • Approved for medical use (24 VDC)

Images

Relevant products

CONTROLBOXES

C2-10



  • Suitable for 1 motor
  • Soft start / soft stop
  • Current limit
  • 0 - 8 A or 0 - 16 A
CONTROLBOXES

C2-20



  • Suitable for 1 motor
  • Analog input
  • Current limit
  • Positioning
CONTROLBOXES

C2-30



  • Suitable for up to 2 motors
  • FW/BW command
  • Current limit
  • Parallel control
ORDERS

C2-40-PLI



  • Suitable for up to 4 motors
  • FW/BW command
  • Current limit
  • Parallel control
